London cafe in spiral concrete shell has retractable windows

A spiral cafe with a rooftop garden in Chelsea, London, by architecture studio NEX has curved windows that can retract fully when the weather is good.

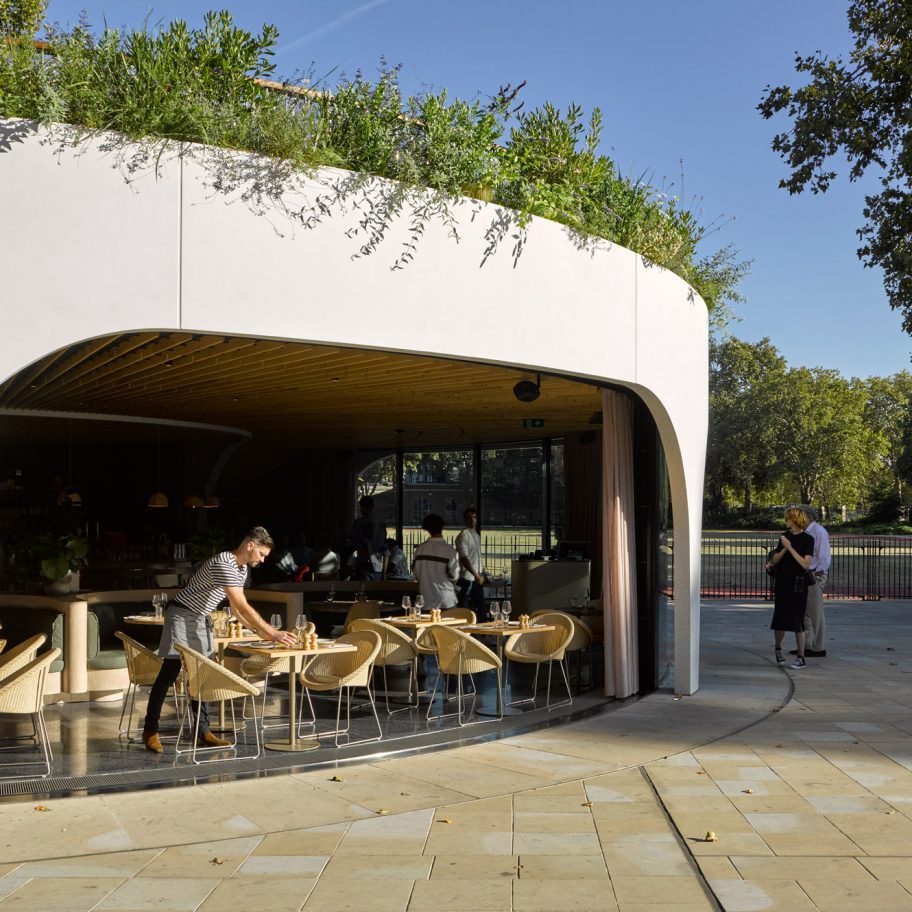

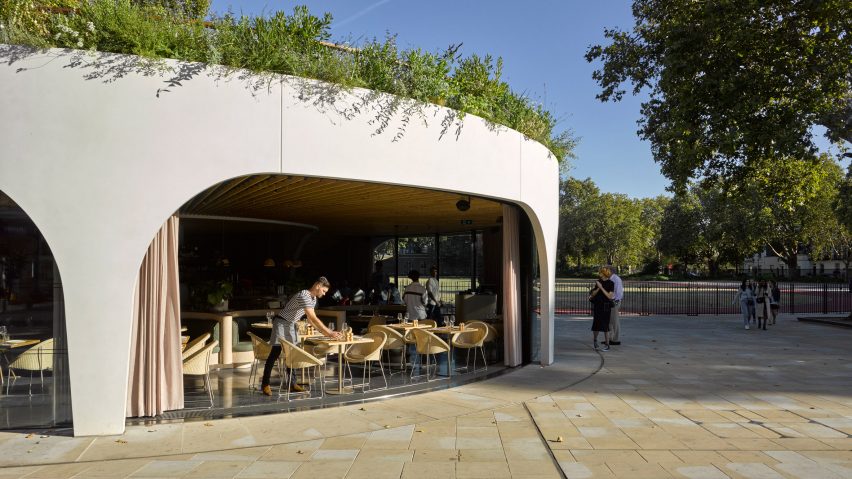

The windows of the the Cadogan Cafe can retreat into the ground, allowing the dining area to to spill out into the surrounding square.

Cadogen Cafe by NEX in Chelsea, London

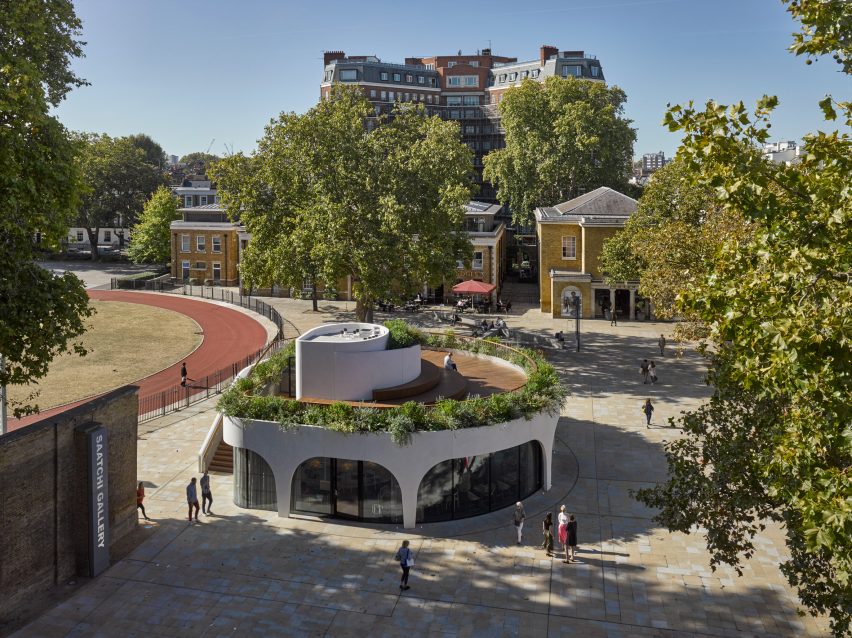

Wrapped in a slender arcade of 15-centimetre-thick concrete panels, the cafe is located on Duke of York Square, next to the Saatchi Gallery on King's Road.

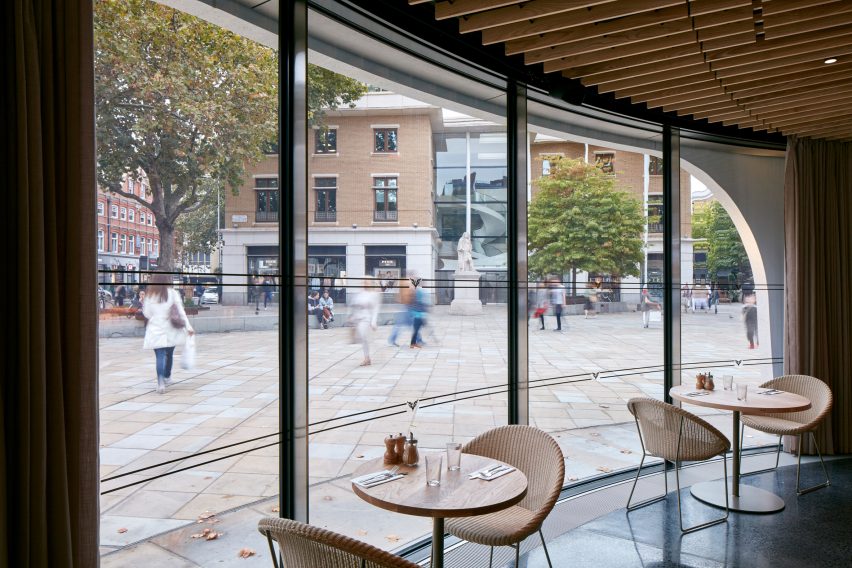

The retractable, curved glazing elements use a chain system similar to a sash window to lower the windows into a basement channel.

Cadogen Cafe by NEX in Chelsea, London

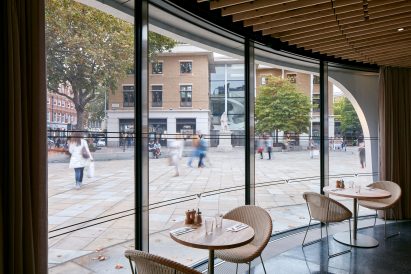

These windows sit partially lowered to form a glazed balustrade around the interior, or can sit completely flush with the ground level of the square.

Echoing a section of a Grade II-listed wall from a a military building that used to occupy the site, Cadogan Cafe's spiral form was created using a bespoke steel frame.

Cadogen Cafe by NEX in Chelsea, London

Engineers at AKT II design a frame for NEX that didn't need any horizontal mullions.

The off-white walls curl in on itself to create a concrete core, mirroring the arcaded form of the outer wall and housing a lift.

Cadogen Cafe by NEX in Chelsea, London

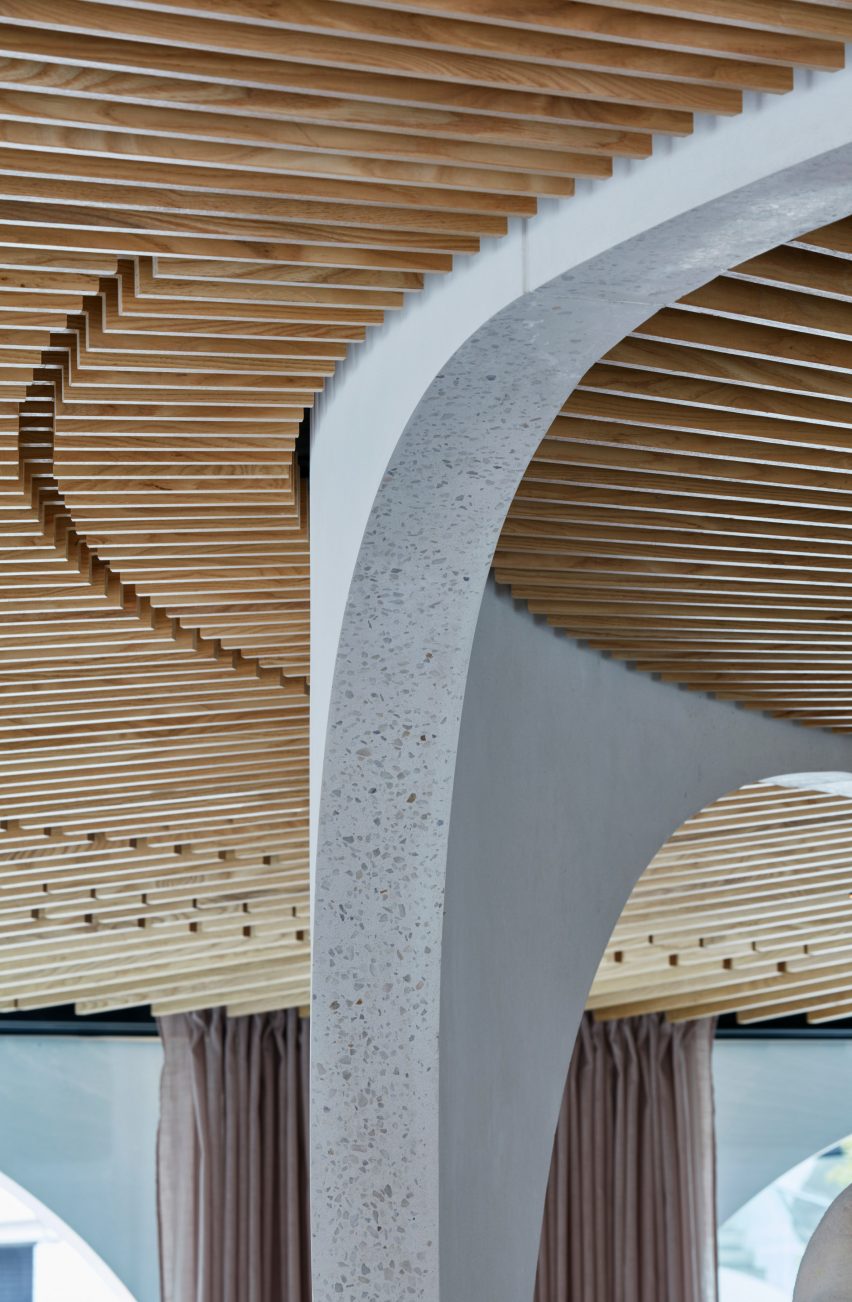

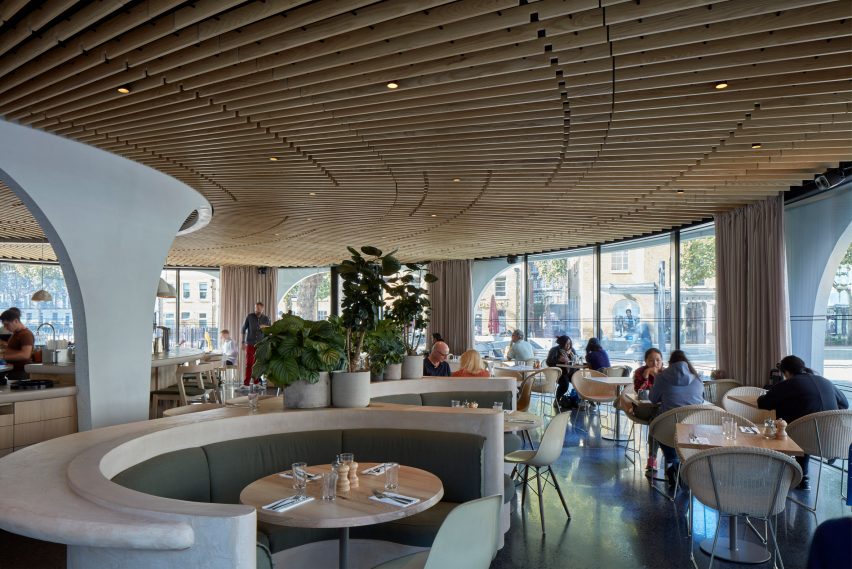

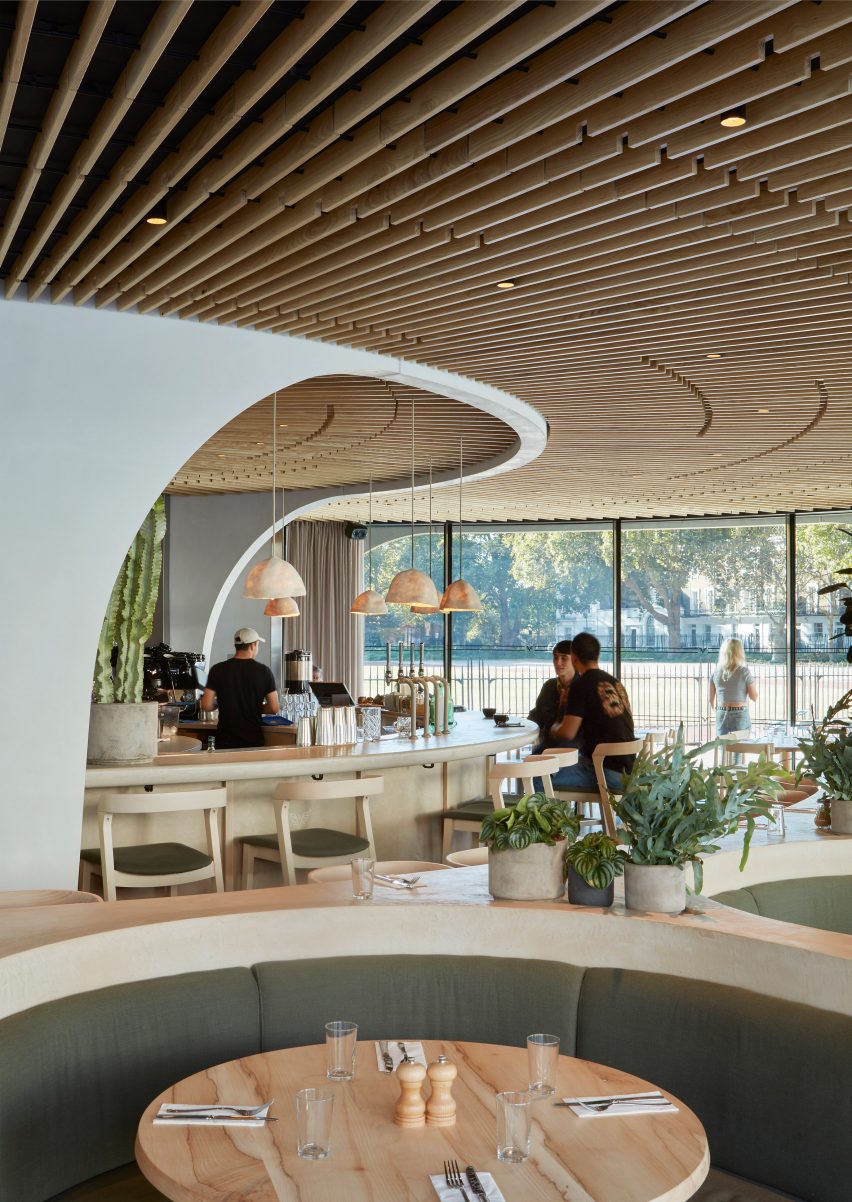

Ash wood slats line the ceiling of Cadogan Cafe to emphasising its spiral form, and curved seating booths allude to the arched forms of the structure.

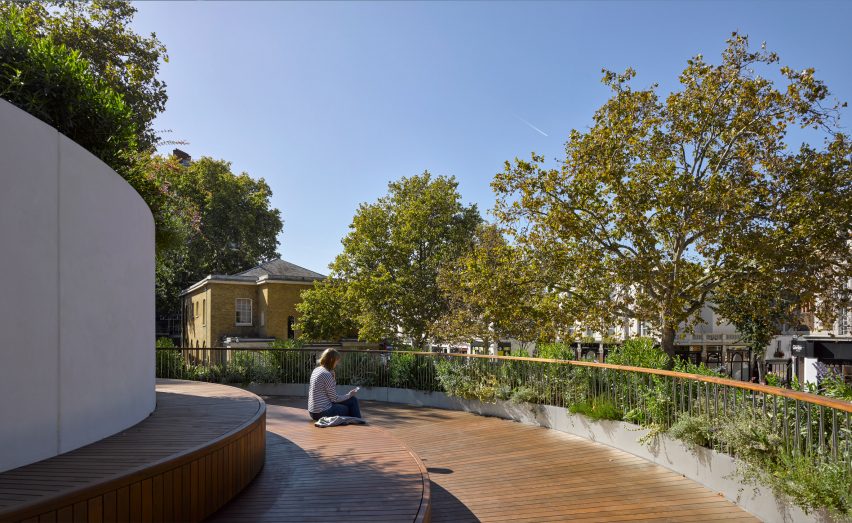

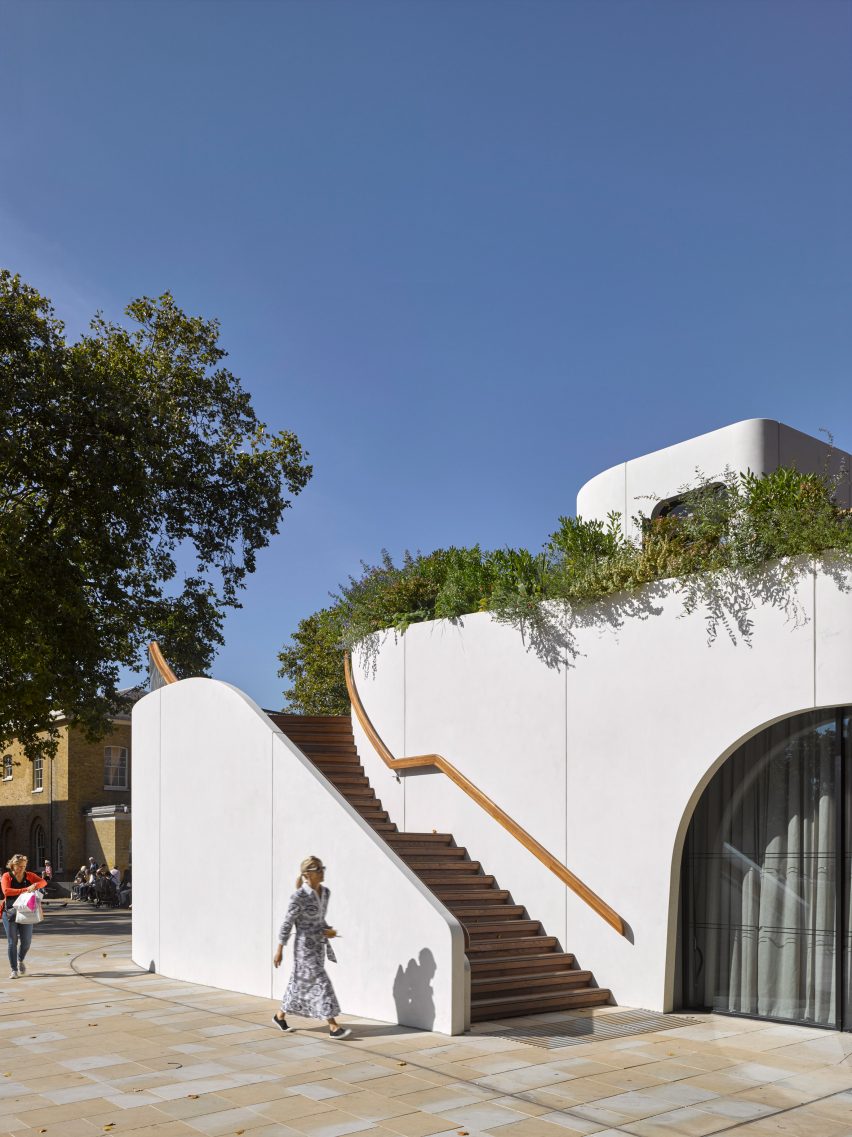

At the outermost end of the spiral a staircase leads up to a roof garden above the restaurant, which is accessible to the public independent of the spaces below.

Cadogen Cafe by NEX in Chelsea, London

"This garden is a generous 'gift' to the neighbourhood where people can sit or spend time among the canopies of surrounding trees, raised up from the bustle of the busy square and road below," said the studio.

Large planters are embedded in the protruding core of the spiral as well as around its edges.

Cadogen Cafe by NEX in Chelsea, London

Timber decking and seating along with external lighting make a welcoming space during the day or night.

NEX Architecture was founded in 2009 by Alan Dempsey, and the practice was chosen to design the Cadogan Café after winning a competition in 2012 organised by Malcom Reading Consultant.

Cadogen Cafe by NEX in Chelsea, London

Previous projects by the firm include a timber pavilion for the 2011 Chelsea Flower Show inspired by the structure of a leaf.

Photography is by James Brittain.


Project credits:

Client: Cadogan Estates
Architect: Nex
Landscape Architect: Bradley Hole Schoenach BHSLA
Project manager: Capital and Provincial
Cost consultant: Equals Consulting, TTPP
Structural engineer: AKTII
MEP engineer: E&M Tecnica
Lighting: DHA Design
Planning consultant: Gerald Eve
Principal designer: Nex
Contractors: Westgreen

More images and plans

Cadogen Cafe by NEX in Chelsea, London

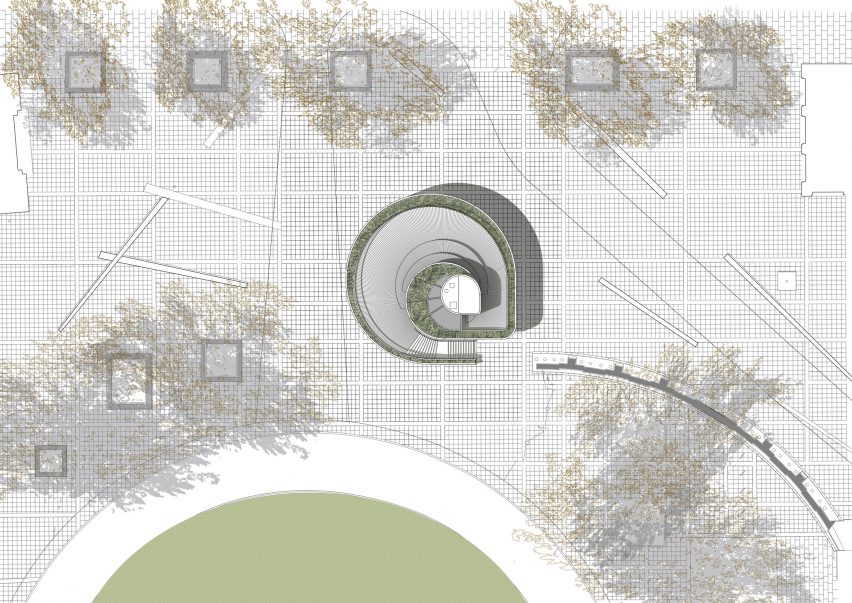

Site plan
Cadogen Cafe by NEX in Chelsea, London

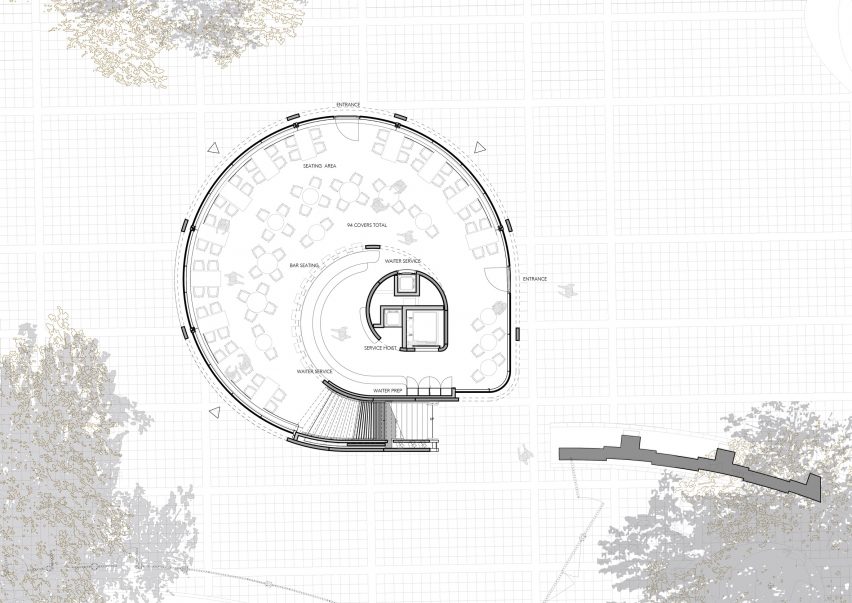

Ground floor plan
Cadogen Cafe by NEX in Chelsea, London

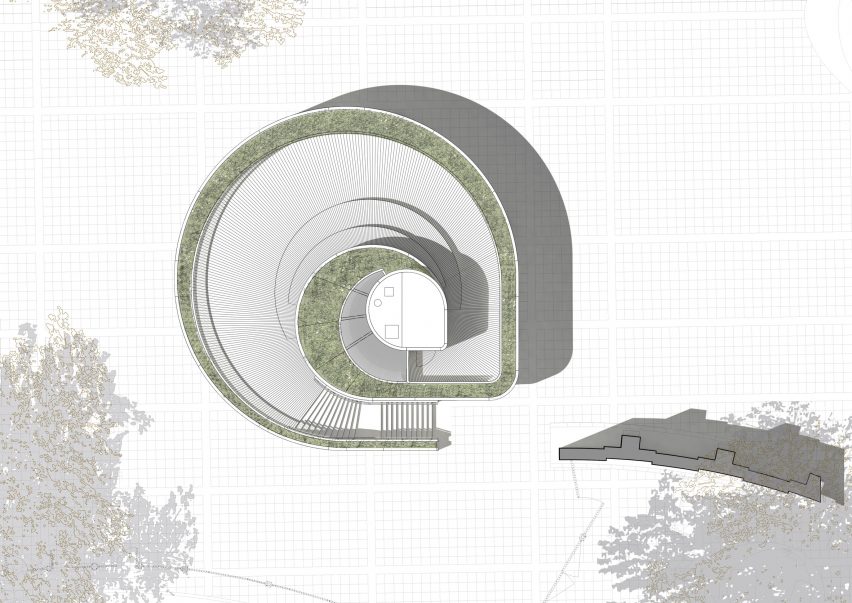

Roof plan
Cadogen Cafe by NEX in Chelsea, London

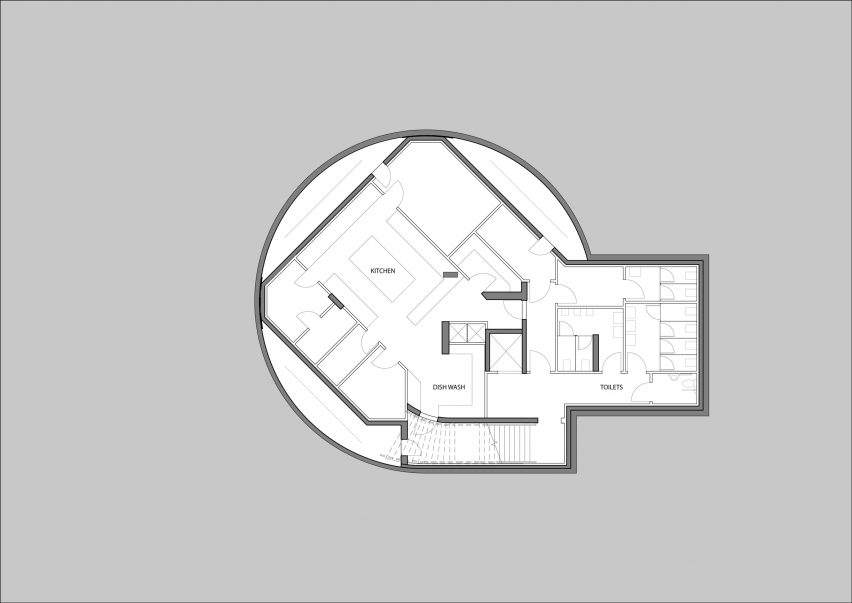

Basement plan
Cadogen Cafe by NEX in Chelsea, London

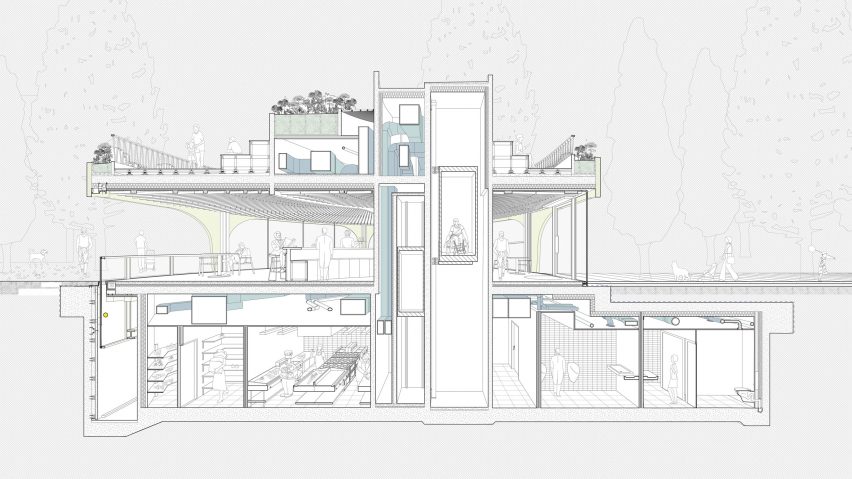

Section
